Generator |
MODEL NAME |

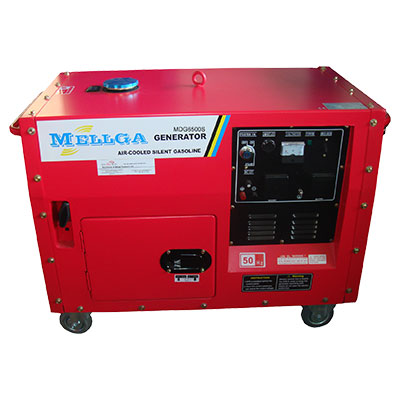

MDG6500S |
MG7500S WITH ATS |
|
Frequency |
50 HZ |
50 HZ |
|
|
Rated Output |
5 KVA |
6.5 KVA |
|
|
Max Output |
5.5 KVA |
7.0 KVA |
|
|
Voltage (AC) V |
230 |
230 |
|
|
Voltage (DC) V |
12V-8.3A |
12V-8.3A |
|
|
Rated Current |
21.7A |
23.9A |
|
|
Phase |
Single phase (1) |
Single phase (1) |
|
|
Power Factor |
1.0 |
0.8 |
|
|
Battery Capacity (AH) |
12 |
12 |
|
|
Noise Level (dBA) |
70 DbA at 7m |
70 DbA at 7m |
|
|
Engine |
Model |
186F |
M420 |
|
Type |
Single-Cylinder, Air-cooled |
Single-Cylinder, 4-stoke, Air cooled |
|
|
Bore*Stroke (mm) / (inch) |
186 |
88*64/3.4*2.5 |
|
|
Starting |
Electric Start |
Electric Start/ Recoil start |
|
|
Unit |
Fuel Tank Capacity (L) |
16 |
16 |
|
Dimension L*W*H (mm) /(inch) |
1050*535*690/41.3*21.0*27.1 |
1050*535*690/41.3*21.0*27.1 |
|
|
Net weight (kg) / (lbs) |
154KG |
126KG |
