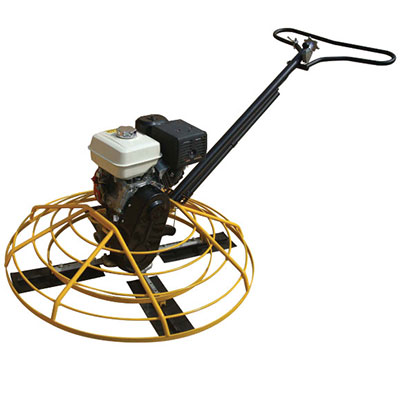

These high capacity trowels have 900 to 1,200 mm trowel diameters and power outputs from 5.5 to 9 hp, delivered by high quality Honda engines and a reliable gearbox. An adjustable handle with two different lengths makes work comfortable and safe. Thanks to great design the handle is both stable and lets you reach all controls directly.

Other information


These high capacity trowels have 900 to 1,200 mm trowel diameters and power outputs from 5.5 to 9 hp, delivered by high quality Honda engines and a reliable gearbox. An adjustable handle with two different lengths makes work comfortable and safe. Thanks to great design the handle is both stable and lets you reach all controls directly.

Technical details

Protection ring diameter 950 mm

Operating weight 87 kg

Blade diameter 900 mm

Disc diameter 945 mm

Floating blade diameter 945 mm

Blade speed 40 – 115 rpm

Number of blades 4

Type of handle Short foldable

Type of blade angel adjustment Twist pitch

Lifting hook Standard

Transport wheels Accessory

Bladearm Type Quick release / Bolt on

Engine

Engine brand Honda

Model GX160

Power 3.6 kW

Fuel Petrol

Fuel tank capacity 3.1 l

Vibration value 3.5 m/s²

Sound power, guaranteed 106 LwAdB(A)

Sound pressure at operators ear 92 dB(A)

Model code H5 F BC TP

Part number 4812 0554 18
