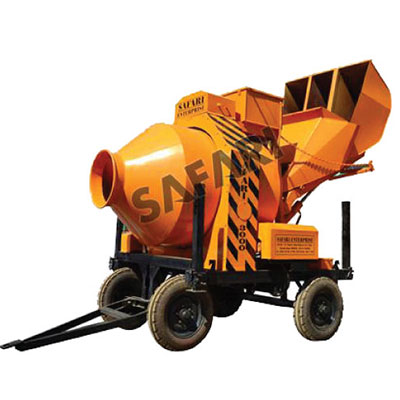

Safari Reversible drum mixers have hoppers wherein sand, cement & other aggregates are digitally weighed and loaded in its heavy duty mixer drum. In this reversible drum, concrete is mixed in forward rotation and discharged in reverse rotation. Options of single bin, three bin & four bins as per requirement. SCADA enabled advanced system available with SAFARI Reversible Drum Mixer

Other information

Safari Reversible drum mixers have hoppers wherein sand, cement & other aggregates are digitally weighed and loaded in its heavy duty mixer drum. In this reversible drum, concrete is mixed in forward rotation and discharged in reverse rotation. Options of single bin, three bin & four bins as per requirement. SCADA enabled advanced system available with SAFARI Reversible Drum Mixer

Reversible Drum Mixer Features

» Low maintenance due to Planetary Gear Box

» Heavy Duty Twin Rollers

» Extra Chassis Support

» Centralized Grease Lubricating System

» Wider Wheel Track

» Drum & Mechanical Jack in 5 mm M.S.

» Smart Hopper Design to reduce spillage

» Energy Efficient & Cost Saving

» Automatic Water Control via water meter

» Optional four bin system available

» Reversible Drum Concrete Mixers with SCADA enabled

MODEL NO. SAFARI 3000 SAFARI 5000

Drum Capacity 0.8 Cubic Meters/800 Litres 1.050 Cubic Meters/ 1050 Litres

Batch Capacity 0.6 Cubic Meters / 600 Litres 0.75 Cubic Meters / 750 Litres

Output 12 Cu. M/hour approx 15 Cu. M/hour approx

Prime Mover 10 HP Three Phase Crompton Motor

1 HP Three Phase Motor for water pump

0.5 HP Three Phase Vibrating Motor 15 HP Three Phase Crompton Motor

1 HP Three Phase Motor for water pump

0.5 HP Three Phase Vibrating Motor

Gearbox Type Planetary Gear Box; Ratio 7.5:1 Planetary Gear Box; Ratio 6:1

Chassis Heavy Duty Balanced Chassis Heavy Duty Balanced Chassis

Wheels 600 x 16 Pneumatic Tyre – 4 Nos, with wider front track for proper balancing during towing 700 x 19 Pneumatic Tyre – 4 Nos, with wider front track for proper balancing during towing

Loading Hopper Hydraulic Operated with heavy power pack,equipped with single hydraulic jack Hydraulic Operated with heavy power pack,equipped with double hydraulic jack

Weighing System Load Cell based weighing system with digital display. Load Cell based weighing system with digital display.

Discharge Height 1300 mm 1570 mm

Drum Dimensions Dia 1320 mm x L 2070 mm Dia 1555 mm x L 2340 mm

Drum Thickness 5 mm 5 mm

Drum Mouth Diameter 550 mm 600 mm

Rollers Heavy duty Twin Rollers – 5 Nos Heavy duty Twin Rollers – 5 Nos

Jack Leveling Pin Type – 4 nos Pin Type – 4 nos

Hydraulic Pump SGP – 23 gear pump with max 207 bar SGP – 27 gear pump with max 207 bar

Lubrication System Centralized, Grease Centralized, Grease

Speed of Mixing Drum 18 rpm 20 rpm

Dimensions L 4550 x w 2000 x H 2860 mm L 5780 x w 2240 x H 3280 mm

Weight 2430 kg. 3320 kg.

Download Safari Reversible Mixer Specs
