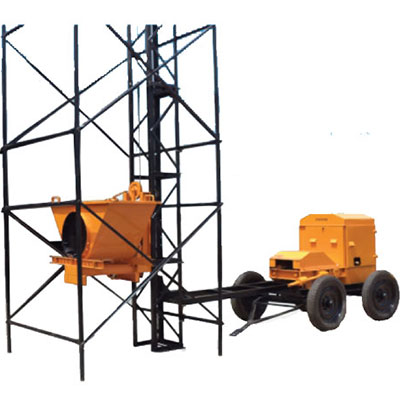

Safari Tower Hoists are heavy duty and require minimum maintenance. They are used to lift concrete and other construction material for slab construction. The scaffolding provided with the Tower Hoist ensures safety at construction sites.

Tower Hoist Features

» Easy to install

» Scaffolding ‘H-frame’ of B-Class, ISI marked pipe

» No Foundation Required

» Brand New Tyres

» 12 mm Usha Martin Wire Rope

» Heavy Duty Tower

Other information

MODEL NO. SAFARI MINI TH SAFARI TH

Capacity Upto 500 kg gross load Upto 1000 kg gross load

Height Upto 40 Ft Upto 200 Ft

Prime Mover 8 HP Air cooled diesel Engine/5 HP Electric Motor Air cooled diesel Engine/ Electric Motor suitable to required height.

Column/Tower Front: 50 x 50 x 6 mm angle Rear: 35 x 35 x 5 mm angle 50 x 50 x 6 mm angle

Wire Rope 10 mm, 6 x 36 Usha Martin 12 mm, 6 x 36, Usha Martin

Drive Friction Roller Type Friction Roller Type

Foundation Not required Not required

Scaffolding N/A H Frame – B class 31.75 mm dia pipe ISI mark, & Scissors of 30 x 30 x 3 mm

Skip Unit Heavy Duty with safety lock Heavy Duty with safety lock

Bucket Capacity 170 litres / 0.17 cubic meters 250 litres / 0.25 cubic meters

Wheels Brand new 400 x 8 pneumatic tyre with hub & bearing system, and pressed steel plate rims – 4 no’s Brand new 500 x 19 pneumatic tyre with hub & bearing system, and pressed steel plate rims – 4 No’s
